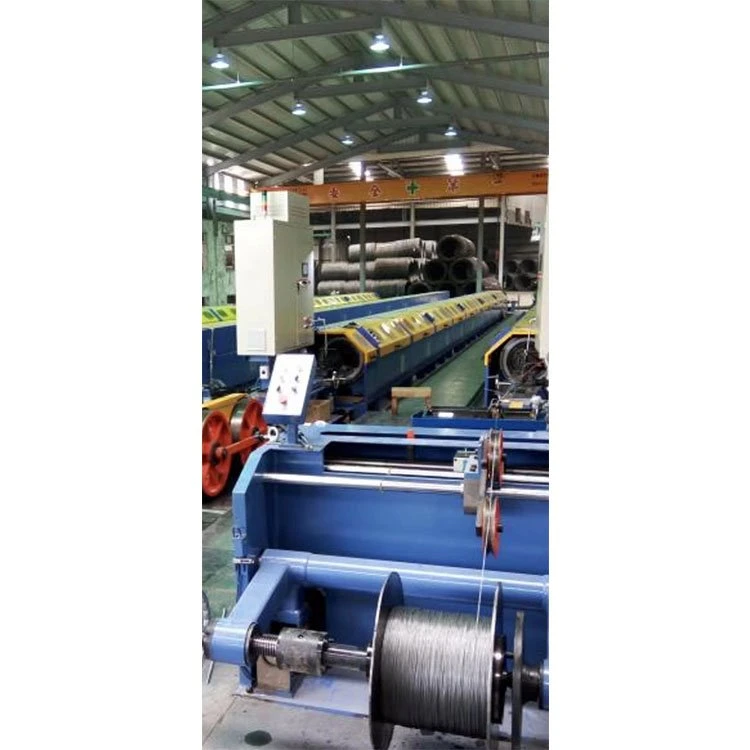

250/6 Kab rov tav yeeb nkab Stranding tshuab

Tus naj npawb

Lub npe ntawm cov khoom yuav khoom

Tag nrho qhov ntev

Qauv

Tus naj npawb ntawm

Qhov hnyav ntawm lub

1

Kev kub ceev tube twister

Dav 1000 * qhov siab 1300 * ntev 8800

6/250

3200 KG

Cov cuab yeej muaj pes tsawg leeg

1, cov khoom siv yog tsim los ntawm Central Line, chim, tsim, traction, retracting kab, hluav taws xob tswj ib feem;

Qhov project

Tus naj npawb

Khoom siv

Cov kev xav tau muaj nuj nqi thiab cov khoom siv tsis tau

ceeb toom

Lub hauv paus ua haujlwm no tuaj yeem thiab ginseng Tus lej

1

Txoj kab uas hla ntawm hlau ua ntej twisting (mm)

0.8 ~ 1.8

2

Tom qab twist (mm)

2.5 ~ 4

3

Twist range (mm)

1-80

4

Khoom siv ceev (RPM)

Qhov siab tshaj plaws ceev 2000 RPM, ua hauj lwm ceev 1800 RPM, cov cuab yeej ceev hloov tau muab lo lus zais (PLC muaj nuj nqi tswj)

5

Kev Taw Qhia ntawm cov khoom siv

Tig lub cuab yeej, cov hlau yog nyob rau sab xis

6

Twist kev taw qhia ntawm qhov system

S/Z

7

Tube threading hom

Txoj xov

8

Hlau hlau zog qib ntau (Mpa)

600 ~ 2800

9

Nres thaum lub ' meter ' tsim ua ntej mus txog

Kev ntsuas ntsuas tau txais PLC tsis siv neeg nres rau ntsuas ntsuas, ntsuas qhov tseeb Tsawg dua lossis sib npaug li 1.5 feem pua.

10

Cov cuab yeej siv yuav tsum nres tsis siv neeg thaum pom cov kab tawg hauv thaj tsam ntawm lub tog raj kheej lub cev thiab nias tuag

Cov cuab yeej muaj disconnection nres lub tswb ntaus ntawv.

11

LED teeb pom kev zoo yog ntsia hauv lub hau kev nyab xeeb

Rau cov teeb pom kev tsis zoo thiab cov teeb ci, kev tiv thaiv kev nyab xeeb yuav tsum tau muab rau ntawm qhov chaw kom tsis txhob muaj kev sib tsoo ntawm lwm yam khoom thiab cov hlau hlau.

12

daim ntaub thaiv

Txhua lub log I-wheel sib raug rau lub qhov rais saib. Lub qhov rais pom yog ua los ntawm cov iav toughened, thiab lub hau kev nyab xeeb yog hloov tau yooj yim qhib thiab nqis nrog seamless steel yeeb nkab. Lub tshuab tuaj yeem nres tam sim yog tias nws qhib Tsawg dua lossis sib npaug li 150mm. Thaum lub hau kev nyab xeeb qhib thiab tsis kaw, lub platform tsuas yog txav tau tab sis tsis tuaj yeem pib ib txwm. Lub suab nrov tshaj plaws yog 82dB kuaj ntawm qhov deb ntawm 1000mm los ntawm kev tiv thaiv npog

Tshem tawm cov kab nruab nrab

Hom kev pub mis

tsis tig

Kuv log jacking system

Muaj hom ncej, bearing txhawb txhua yam nro kab.

Lub damping system

Siv tshwj xeeb hnav-resistant hlua caij nplooj ntoos hlav ntsia hlau hloov

Txoj kab uas hla ntawm Tso Tawm I-log (mm)

250 (raws li qhov xav tau ntawm I-wheel xav tau)

Hauv lub tog raj kheej, lub log ua haujlwm lays txoj kab

13

Kuv log jacking system

Muaj hom ncej, bearing txhawb txhua yam tsis tu ncua tension paug, nro fluctuation tsawg dua 3N, nro ntau ntawm 30 ~ 80N.

14

Lub damping system

Siv tshwj xeeb hnav-resistant hlua caij nplooj ntoos hlav ntsia hlau hloov

15

Txoj kab uas hla ntawm Tso Tawm I-log (mm)

250 (raws li qhov xav tau ntawm I-wheel xav tau)

Lub tog raj kheej ntu

16

Tus naj npawb ntawm I-wheels hauv txhua lub tog raj kheej

6 * 1 ntu =6

17

Hom xaim system ntawm lub tog raj kheej

Txhim kho cov kev taw qhia log ntawm txhua qhov khoov kom dhau txoj kab, thiab xyuas kom meej tias cov hlau hlau tsis plam thaum nteg tawm txoj kab.

18

Sab hauv txoj kab uas hla ntawm tungsten carbide nozzle rau txheej hlau routing

Threading nozzle yog ua los ntawm cov khoom siv tawv alloy YG8 nrog ib txoj kab uas hla ntawm 8 hli. Nws yog tsau los ntawm cov ntsia hlau zawm thiab kua nplaum kom txhim khu kev qha.

19

Hlau qhov hluav taws xob Lub kaum sab xis ntawm hlau tais

Lub kaum sab xis siab tshaj plaws los ntawm cov hlau nozzle ntawm qhov nruab nrab ntawm lub paj phaj mus rau cov hlau nozzle ntawm phab ntsa chim yuav tsum tsis pub tshaj 30 degree. Lub kaum sab xis siab tshaj plaws ntawm ob txoj kab tawg los ntawm lub qhov hluav taws xob ntawm lub qhov hluav taws xob ntawm thawj lub chim mus rau cov hlau nkag ntawm lub thoob kawg yuav tsum tsis pub tshaj 25 degree. Lub kaum sab xis siab tshaj plaws ntawm cov kab tawg los ntawm lub qhov hluav taws xob lub qhov hluav taws xob ntawm lub qhov hluav taws xob thib ob mus rau lub qhov hluav taws xob ntawm qhov sib faib disk yuav tsum tsis pub tshaj 25 degree. Tshwj xeeb alloy tuag yuav tsum tau muab ntsia rau ntawm qhov hluav taws xob los yog khoov kom ntseeg tau tias cov hlau hlau tsis plam los ntawm cov hlau tuag.

20

Lub tog raj kheej txhawb nqa bearing

Cov kabmob loj

Brand NSK

21

Lub tog raj kheej txhawb nqa loj bearing lubrication

Roj lubricated, txhua tus kabmob yog ntsia rau ntawm lub rooj zaum, kev ua haujlwm kub tsawg dua lossis sib npaug li 75 degree

22

Bearing seat structure

Hlau hlau.(QT - 400)

23

Phab ntsa thickness (mm)

Tsis pub tsawg tshaj 12mm

24

Lub tog raj kheej system dynamic system

Nres thiab nres xwm ceev yog qhov txawv. Kev nres ib txwm yuav tsum tau nres tom qab deceleration, uas tuaj yeem ua tiav los ntawm kev siv zog nres thiab lwm txoj hauv kev. Lub sijhawm nres nres nres yog tsawg dua 20 vib nas this, thiab nres thaum muaj xwm ceev yuav tsum ua kom tiav hauv 10 vib nas this. Nres ncoo tau yooj yim hloov tom qab hnav.

25

Hlau tais ncej I-log xauv

Cov hlau phaj thav duab yog nruab nrog ncej bearing los txhawb ntsug tas li nro nteg tawm, thiab tsis siv neeg hloov nteg tawm nro ntaus ntawv los xyuas kom meej tias txhua steel hlau thiab strand nteg tawm tusyees. Damping nro ntsia hlau hloov rau sab tes xis ua haujlwm.Txhua lub tais hlau tuaj yeem ua tau raws li qhov xav tau ntawm ø 250 I-log.

26

Kuv log bearing hom

Kab rov tav txhawb kev xaim

27

Kuv log damping hauv hlau tais

Tsis siv neeg hloov kho ntawm cov hlau nro, xyuas kom meej tias txhua cov hlau hlau, strand uniform kab.I log ntawm txoj kab, damping siv ntsia lub caij nplooj ntoos hlav, damping nro ntsia hlau hloov rau txoj cai tes ua haujlwm.

28

Cov kab hluav taws xob ntes tau tawg

Tswb kab tswb, PLC tswj qhov kev pab cuam.

29

Parallel lub tog raj kheej tsim

Lub cev lub cev yog ib txoj kab sib txuas sab nraud, xyuas kom meej tias cov hlau xaim los ntawm qhov hluav taws xob ntawm lub thoob lub cev mus rau qhov kaw lub qhov ncauj ntawm cov xovxwm tuag zoo ib yam thiab tsis muaj qhov tshwm sim ntawm qhov hloov pauv, thiab qhov siab tshaj plaws folding lub kaum sab xis ntawm lub qhov hluav taws xob lub qhov ncauj. chim lub cev thiab lub qhov hluav taws xob lub qhov ncauj ntawm cov hlau phaj yuav tsum tsis txhob siab tshaj 25 degree.

30

Lub host base

Tshooj steel plus steel plus pob zeb

31

Spindle tsav lub thawv

Spindless tsav

Nyob rau hauv lub puab cheeb tsam
Lub domain

32

Qhov tis ntawm hlau tais

Teeb ntawm 6 qhov. Txhua txheej ntawm cov hlau spout yog ua los ntawm cov khoom siv nyuaj YG6X nrog ib txoj kab uas hla ntawm 8 hli thiab tsau nrog cov kua nplaum kom ruaj khov kho.

33

Pre deformation apparatus

Bayonet installation yog tshwj tseg thiab kho raws li cov khoom tsim tshwj xeeb

34

Kaw lub kaum sab xis ntawm nias tuag

25 degree los yog tsawg dua

35

Xovxwm kab tuag yas dhos qauv

Lub siab lub caij nplooj ntoos hlav adjusts lub siab

36

Nias tuag loj

100 * 50 * (25 plus 25) L * W * H (qhov siab: loj 50 tom qab ob daim raug kaw)

Tau customized

37

Pwm puag mobile

Txoj kab nias tuag ncej txais dovetail zawj qhia kev tsheb nqaj hlau los kho thiab txav mus tau yooj yim

38

Tom qab deformer

Customize raws li cov khoom qauv specifications

tuav lub log

39

traction

Hluav taws xob tswj synchronization

40

Traction log txoj kab uas hla mm

460 * 2 ￠

41

Traction log hom groove / dav hlau hom

Ua groov

42

Traction wheel support system

Cov kabmob txhawb nqa

43

Number of slots/Slot diameter

Tshooj 8 txog 9 / R3mm

44

Qhov hardness

Traction log khoom GCr15, hardness Ntau dua los yog sib npaug rau HRC58-60o

45

Lub realization ntawm twist nrug transformation

PLC infinite variable ceev

46

Qhov ntsuas ntsuas

Ib qho kawg ntawm lub log traction yog ze rau lub ntsuas ntsuas

47

Electronic meter 'meter' ntaus ntawv

PLC hluav taws xob ntsuas, tso rau ntawm qhov screen

48

Tsav txoj kev

Ib leeg nquag thiab ob lub log traction

Kaw kab kab

49

Ribbon kab

Servo lub cev muaj zog tswj

50

Kab txav hom

Pob ntsia hlau kab, PLC tswj kev thim rov qab

51

Vertical / kab rov tav regulating log

Cov menyuam muaj R groove, bearing steel

52

Kaw kab kev them nyiaj yug

Txais i-wheel txais txhua yam pneumatic sab saum toj hom

53

Siv zog

Sib nqus hmoov clutch tas li nro retracting.

54

Qhov loj ntawm qhov tau txais I-log (mm)

Cov neeg siv khoom muab

Tsav dynamic
Department of system / hluav taws xob tswj

55

kis tau tus mob

Tsis muaj

56

Tus tswv tsev tsav tsheb

Lub cev muaj zog tsav lub tog raj kheej kom tig

57

Main lub cev muaj zog

Lub cev muaj zog (11KW)

58

traction

zaus conversion motor

59

Siv lub cev muaj zog

zaus conversion motor

60

Main cav ceev tswj

Lub inverter

61

Ua tiav tshuab hluav taws xob tswj

PLC tswj qhov program

62

tso saib

Kov npo
