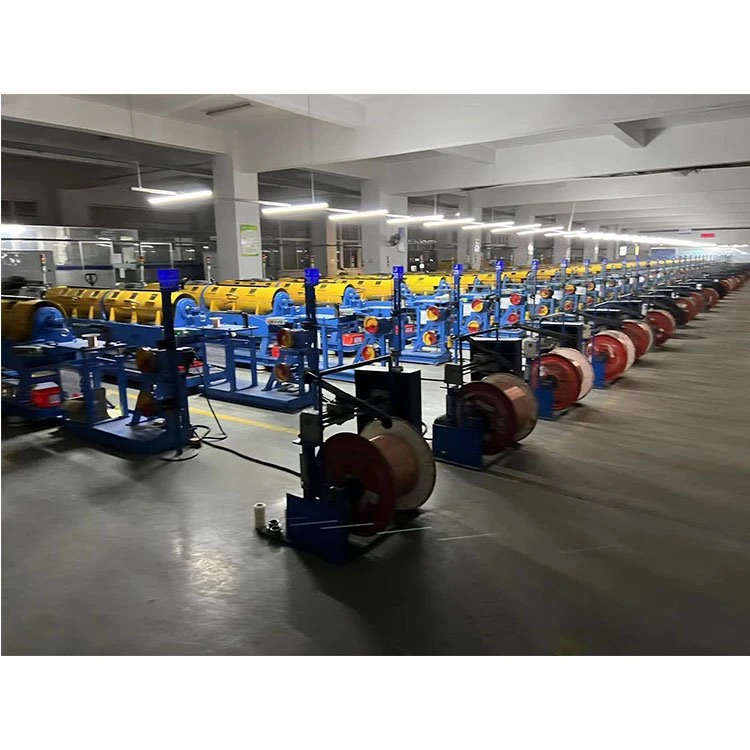

120/12 Kab rov tav yeeb nkab Stranding tshuab

Siv

Nws yog tsim rau cov ntaub ntawv cables (qib tsib, rau, xya) thiab high-frequency cables, computer cables, fais fab cables thiab lwm yam multi-strand cables thiab synchronous tapes.

Cov yam ntxwv ua haujlwm

Lub tshuab tseem ceeb ntawm HD-800 cantilever ib leeg winch txais cov qauv cantilever, uas yog tsim los ntawm PLC qhov kev pab cuam ntxiv rau zaus hloov pauv ceev tswj ntxiv rau pneumatic tswj. , los xyuas kom meej qhov tsis sib xws ntawm lub cable; txhawm rau ua kom muaj kev ruaj ntseg ntawm cov qauv geometric tom qab cabling, ib lub pob khawm cabling tau txais yuav, thiab lub log loj-inch kauj yog tsim los txo qis khoov thiab poob qis; Kev txav ntawm cov hlau reel coj thiab nqa cov xaim, thiab kev txav ntawm cov xaim reciprocating, los ntawm kev tswj ob npaug ntawm cov khoom siv sib txuas thiab cov khoom siv hluav taws xob, xyuas kom meej tias chav tsev muaj kev sib txuas zoo heev los ntawm plaub lub xeev ntawm kev pib, ib txwm ua haujlwm, nres qeeb, thiab nres xwm ceev. Cov yam ntxwv ruaj khov; ruaj khov kev ua tau zoo ntawm tag nrho lub tshuab, kev ua haujlwm yooj yim, los xyuas kom meej cov khoom ua tau zoo.

Tag nrho qhov system

1. Ntaus kev taw qhia: sab laug-rau-txoj cai → txoj cai-rau-retract

2. Cov khoom siv hluav taws xob: 380V / 50HZ

3. Painting: ntuj xiav (tuaj yeem ua raws li cov neeg siv khoom xav tau)

Cov cuab yeej muaj pes tsawg leeg

1. Qhov muag pwm thiab meter sau sawv ntsug -----------------------------1 teeb (tus qauv)

2. Φ800 cantilever ib leeg twisting tshuab lub ntsiab cav ------------- 1 teeb (tus qauv)

(1) Stranded hlau txoj kab uas hla: siab tshaj Φ20mm

(2) Siv tau cov tub ntxhais hlau sab nraud: Φ1.0mm-40mm

(3) Twisting nrug: 30mm-200mm

(4) Lub cev muaj zog loj: 15HP lub cev muaj zog ntxiv rau kev hloov pauv ceev ceev

(5) Lub cev muaj zog: 5.5HP lub cev muaj zog ntxiv rau qhov sib txawv

(6) Cable motor: 1HP geared motor

(7) Spool nqa: electro-hydraulic nqa

(8) Ceev: 0~ 700/min, ib txwm ceev 600PRM/min

(9) Qhov ntev: (L × W × H) 380 × 172 × 178cm

(10) Nyhav: 5500KG

(11) Txoj kab uas hla ntawm nqa rov qab: Φ800mm x600mm xΦ80mm (qhov ntev yog muab los ntawm tus neeg siv)

3. PLC lub computer tswj lub thawv -------------------------------- 1 teeb (tus qauv)

(1) Kev tswj hluav taws xob: PLC: Siemens system,

(2) Tib neeg-tshuab interface: Taiwan Wellun 7 nti,

4. Center wrapping tshuab --------------------------------------- 1 teeb (yeem)

5. Sab strapping tshuab --------------------------------------- 1 teeb (yeem) match)

6. 12 ob-kab passive tension pay-off racks --------------------1 teeb (yeem)

7. HD-500 ob lub taub hau tsis siv neeg them nyiaj tshuab ---------------------- 1 teeb (yeem)

8. HD-500 untwisting thiab them-off tshuab ---------------------------- 1 teeb (yeem)
