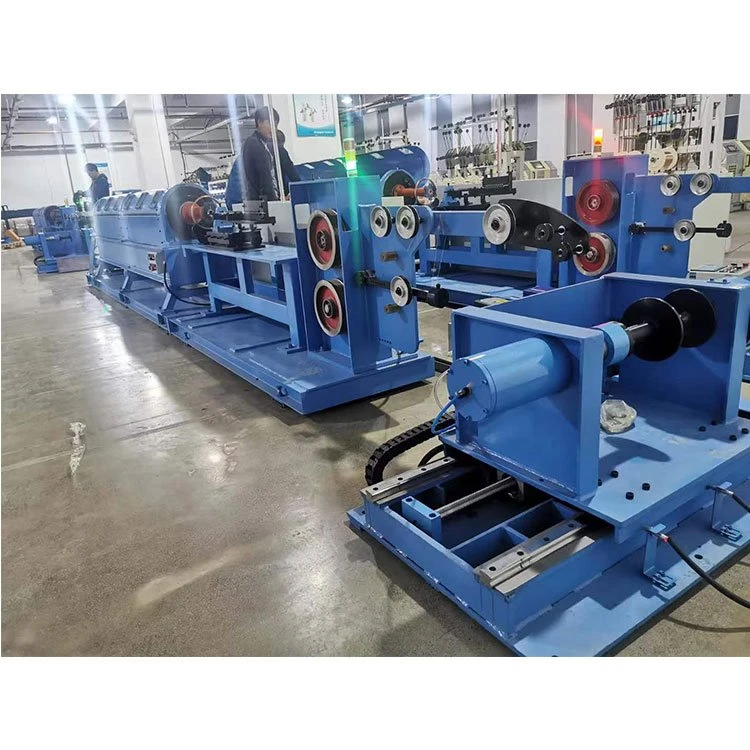

165/6 Kab rov tav yeeb nkab Stranding tshuab
Lub tshuab stranding ua haujlwm tau zoo tshwj xeeb yog siv rau cov xov hlau stranding xws li hluav taws xob xaim, tsheb thaiv tsheb, thiab twisted khub xov hlau.
Hauj lwm lawm
|
Teeb tsa kev npaj technology thiab kev tswj kom zoo |
||||||
|
Tus naj npawb |
Lub npe ntawm cov khoom yuav khoom |
Tag nrho qhov ntev |
qauv |
Tus naj npawb ntawm |
Qhov hnyav ntawm lub |
|
|
1 |
Kev kub ceev tube twister |
Dav 1000 * qhov siab 1300 * ntev 6800 |
6/165 |
2200 KG |
||
|
Cov cuab yeej muaj pes tsawg leeg |
1, cov khoom siv yog tsim los ntawm Central Line, chim, tsim, traction, retracting kab, hluav taws xob tswj ib feem; |
|||||
|
Qhov project |
Tus naj npawb |
Khoom siv |
Cov kev xav tau muaj nuj nqi thiab cov khoom siv tsis tau |
ceeb toom |
||
|
Lub hauv paus no |
1 |
Txoj kab uas hla ntawm hlau ua ntej twisting (mm) |
0.1 ~ 0.30 |
|||
|
2 |
Tom qab twist (mm) |
0.3 ~ 1.5 |
||||
|
3 |
Twist range (mm) |
1 ~ 50 |
||||
|
4 |
Khoom siv ceev (RPM) |
Qhov siab tshaj plaws ceev 3000 RPM, ua hauj lwm ceev 2800 RPM, cov cuab yeej hloov ceev tuaj yeem teeb tus password (PLC muaj nuj nqi tswj) |
||||
|
5 |
Kev Taw Qhia ntawm cov khoom siv |
Tig lub cuab yeej, cov hlau yog nyob rau sab xis |
||||
|
6 |
Twist kev taw qhia ntawm qhov system |
S/Z |
||||
|
7 |
Tube threading hom |
Txoj xov |
||||
|
8 |
Hlau hlau zog qib ntau (Mpa) |
600 ~ 2800 |
||||
|
9 |
Nres thaum lub ' meter ' tsim ua ntej mus txog |
Kev ntsuas ntsuas tau txais PLC tsis siv neeg nres rau ntsuas ntsuas, ntsuas qhov tseeb Tsawg dua lossis sib npaug li 1.5 feem pua. |
||||
|
10 |
Cov cuab yeej siv yuav tsum nres tsis siv neeg thaum pom cov kab tawg hauv thaj tsam ntawm lub tog raj kheej lub cev thiab nias tuag |
Cov cuab yeej muaj disconnection nres lub tswb ntaus ntawv. |
||||
|
11 |
LED teeb pom kev zoo yog ntsia hauv lub hau kev nyab xeeb |
Rau cov teeb pom kev tsis zoo thiab cov teeb ci, kev tiv thaiv kev nyab xeeb yuav tsum tau muab rau ntawm qhov chaw kom tsis txhob muaj kev sib tsoo ntawm lwm yam khoom thiab cov hlau hlau. |
||||
|
12 |
daim ntaub thaiv |
Txhua lub log I-wheel sib haum mus rau qhov pom qhov rais.Lub qhov rais pom yog ua los ntawm cov iav toughened, thiab lub hau kev nyab xeeb yog flexibly qhib nce thiab nqis nrog seamless steel yeeb nkab. Lub tshuab tuaj yeem nres tam sim ntawd yog tias nws qhib tsawg dua lossis sib npaug ntawm 150mm.Thaum lub hau kev nyab xeeb qhib thiab tsis kaw, lub platform tsuas yog txav tau tab sis tsis tuaj yeem pib ib txwm.Lub suab nrov tshaj plaws yog 82dB kuaj ntawm qhov deb ntawm 1000mm los ntawm kev tiv thaiv npog |
||||
|
Tshem tawm cov kab nruab nrab |
Hom kev pub mis |
tsis tig |
||||
|
Kuv log jacking system |
Muaj hom ncej, bearing txhawb txhua yam nro kab. |
|||||
|
Lub damping system |
Siv tshwj xeeb hnav-resistant hlua caij nplooj ntoos hlav ntsia hlau hloov |
|||||
|
Txoj kab uas hla ntawm Tso Tawm I-log (mm) |
165 (Raws li qhov xav tau ntawm I-wheel yuav tsum) |
|||||
|
Hauv lub tog raj kheej, lub log ua haujlwm lays txoj kab |
13 |
Kuv log jacking system |
Muaj hom ncej, bearing txhawb txhua yam tsis tu ncua tension paug, nro fluctuation tsawg dua 1N, nro ntau 1 ~ 15N. |
|||
|
14 |
Lub damping system |
Siv tshwj xeeb hnav-resistant hlua caij nplooj ntoos hlav ntsia hlau hloov |
||||
|
15 |
Txoj kab uas hla ntawm Tso Tawm I-log (mm) |
165 (Raws li qhov xav tau ntawm I-wheel yuav tsum) |
||||
|
Lub tog raj kheej ntu |
16 |
Tus naj npawb ntawm I-wheels hauv txhua lub tog raj kheej |
6 * 1 ntu =6 |
|||
|
17 |
Hom xaim system ntawm lub tog raj kheej |
Txhim kho cov kev taw qhia log ntawm txhua qhov khoov kom dhau txoj kab, thiab xyuas kom meej tias cov hlau hlau tsis plam thaum nteg tawm txoj kab. |
||||
|
18 |
Sab hauv txoj kab uas hla ntawm tungsten carbide nozzle rau txheej hlau routing |
Threading nozzle yog ua los ntawm cov khoom siv tawv alloy YG8, nrog rau sab hauv txoj kab uas hla ntawm 5 hli. Nws yog tsau los ntawm cov ntsia hlau zawm thiab kua nplaum kom txhim khu kev qha. |
||||
|
19 |
Hlau qhov hluav taws xob Lub kaum sab xis ntawm hlau tais |
Lub kaum sab xis siab tshaj plaws los ntawm cov hlau nozzle ntawm qhov nruab nrab ntawm lub paj phaj mus rau cov hlau nozzle ntawm phab ntsa chim yuav tsum tsis pub tshaj 30 degree. Lub kaum sab xis siab tshaj plaws ntawm ob txoj kab tawg los ntawm lub qhov hluav taws xob ntawm lub qhov hluav taws xob ntawm thawj lub chim mus rau cov hlau nkag ntawm lub thoob kawg yuav tsum tsis pub tshaj 25 degree. Lub kaum sab xis siab tshaj plaws ntawm cov kab tawg los ntawm lub qhov hluav taws xob lub qhov hluav taws xob ntawm lub qhov hluav taws xob thib ob mus rau lub qhov hluav taws xob ntawm qhov sib faib disk yuav tsum tsis pub tshaj 25 degree. Tshwj xeeb alloy tuag yuav tsum tau muab ntsia rau ntawm qhov hluav taws xob los yog khoov kom ntseeg tau tias cov hlau hlau tsis plam los ntawm cov hlau tuag. |
||||
|
20 |
Lub tog raj kheej txhawb nqa bearing |
Cov kabmob loj |
Brand NSK |
|||
|
21 |
Lub tog raj kheej txhawb nqa loj bearing lubrication |
Roj lubricated, txhua tus kabmob yog ntsia rau ntawm lub rooj zaum, kev ua haujlwm kub tsawg dua lossis sib npaug li 75 degree |
||||
|
22 |
Bearing seat structure |
Hlau hlau.(QT - 400) |
||||
|
23 |
Phab ntsa thickness (mm) |
Tsis pub tsawg tshaj 9mm |
||||
|
24 |
Lub tog raj kheej system dynamic system |
Nres thiab nres xwm ceev yog qhov txawv. Kev nres ib txwm yuav tsum tau nres tom qab deceleration, uas tuaj yeem ua tiav los ntawm kev siv zog nres thiab lwm txoj hauv kev. Lub sijhawm nres nres nres yog tsawg dua 20 vib nas this, thiab nres thaum muaj xwm txheej ceev yuav tsum ua kom tiav hauv 10 vib nas this.Nres cov ntaub qhwv tau yooj yim hloov tom qab hnav. |
||||
|
25 |
Hlau tais ncej I-log xauv |
Cov hlau phaj thav duab yog nruab nrog ncej bearing los txhawb ntsug tas li nro nteg tawm, thiab tsis siv neeg hloov nteg tawm nro ntaus ntawv los xyuas kom meej tias txhua steel hlau thiab strand nteg tawm tusyees. Damping nro ntsia hlau hloov rau txoj cai tes ua haujlwm. Txhua lub tais hlau tuaj yeem ua tau raws li qhov xav tau ntawm ø 165 I-log. |
||||
|
26 |
Kuv log bearing hom |
Kab rov tav txhawb kev xaim |
||||
|
27 |
Kuv log damping hauv hlau tais |
Tsis siv neeg hloov kho ntawm cov hlau nro, xyuas kom meej tias txhua cov hlau hlau, strand uniform kab.I log ntawm txoj kab, damping siv ntsia lub caij nplooj ntoos hlav, damping nro ntsia hlau hloov rau txoj cai tes ua haujlwm. |
||||
|
28 |
Cov kab hluav taws xob ntes tau tawg |
Tswb kab tswb, PLC tswj qhov kev pab cuam. |
||||
|
29 |
Parallel lub tog raj kheej tsim |
Lub cev lub cev yog ib txoj kab sib txuas sab nraud, xyuas kom meej tias cov hlau xaim los ntawm qhov hluav taws xob ntawm lub thoob lub cev mus rau qhov kaw lub qhov ncauj ntawm cov xovxwm tuag zoo ib yam thiab tsis muaj qhov tshwm sim ntawm qhov hloov pauv, thiab qhov siab tshaj plaws folding lub kaum sab xis ntawm lub qhov hluav taws xob lub qhov ncauj. chim lub cev thiab lub qhov hluav taws xob lub qhov ncauj ntawm cov hlau phaj yuav tsum tsis txhob siab tshaj 25 degree. |
||||
|
30 |
Lub host base |
Tshooj steel plus steel plus pob zeb |
||||
|
31 |
Spindle tsav lub thawv |
Spindless tsav |
||||
|
Nyob rau hauv lub puab cheeb tsam |
32 |
Qhov tis ntawm hlau tais |
Txheej ntawm 6 qhov.Lub threading nozzle ntawm txhua txheej ntawm hlau phaj yog ua los ntawm cov khoom siv nyuaj YG6X, lub puab txoj kab uas hla ntawm threading nozzle yog 5 hli, thiab cov txheej txheem kho cov kua nplaum yog saws los xyuas kom meej txhim khu kev qha. |
|||
|
33 |
Pre deformation apparatus |
Bayonet installation yog tshwj tseg thiab kho raws li cov khoom tsim tshwj xeeb |
||||
|
34 |
Kaw lub kaum sab xis ntawm nias tuag |
25 degree los yog tsawg dua |
||||
|
35 |
Xovxwm kab tuag yas dhos qauv |
Lub siab lub caij nplooj ntoos hlav adjusts lub siab |
||||
|
36 |
Nias tuag loj |
60 * 40 * (20 ntxiv rau 20) LENGTH * dav * qhov siab (qhov siab: loj 40 tom qab ob daim raug kaw) |
Tau customized |
|||
|
37 |
Pwm puag mobile |
Txoj kab nias tuag ncej txais dovetail zawj qhia kev tsheb nqaj hlau los kho thiab txav mus tau yooj yim |
||||
|
38 |
Tom qab deformer |
Customize raws li cov khoom qauv specifications |
||||
|
tuav lub log |
39 |
traction |
Hluav taws xob tswj synchronization |
|||
|
40 |
Traction log txoj kab uas hla mm |
159 * 2 ￠ |
||||
|
41 |
Traction log hom groove / dav hlau hom |
Ua groov |
||||
|
42 |
Traction wheel support system |
Cov kabmob txhawb nqa |
||||
|
43 |
Number of slots/Slot diameter |
Tshooj 8 txog 9 / R3mm |
||||
|
44 |
Qhov hardness |
Traction log khoom GCr15, hardness Ntau dua los yog sib npaug rau HRC58-60o |
||||
|
45 |
Lub realization ntawm twist nrug transformation |
PLC infinite variable ceev |
||||
|
46 |
Qhov ntsuas ntsuas |
Ib qho kawg ntawm lub log traction yog ze rau lub ntsuas ntsuas |
||||
|
47 |
Electronic meter 'meter' ntaus ntawv |
PLC hluav taws xob ntsuas, tso rau ntawm qhov screen |
||||
|
48 |
Tsav txoj kev |
Ib leeg nquag thiab ob lub log traction |
||||
|
Kaw kab kab |
49 |
Ribbon kab |
Servo lub cev muaj zog tswj |
|||
|
50 |
Kab txav hom |
Pob ntsia hlau kab, PLC tswj kev thim rov qab |
||||
|
51 |
Vertical / kab rov tav regulating log |
Cov menyuam muaj R groove, bearing steel |
||||
|
52 |
Kaw kab kev them nyiaj yug |
Txais i-wheel txais txhua yam pneumatic sab saum toj hom |
||||
|
53 |
Siv zog |
Hang tuo viav vias pas nrig tas li nro retracting kab. |
||||
|
54 |
Qhov loj ntawm qhov tau txais I-log (mm) |
Cov neeg siv khoom muab |
||||
|
Tsav dynamic |
55 |
kis tau tus mob |
Tsis muaj |
|||
|
56 |
Tus tswv tsev tsav tsheb |
Lub cev muaj zog tsav lub tog raj kheej kom tig |
||||
|
57 |
Main lub cev muaj zog |
Lub cev muaj zog (5.5KW) |
||||
|
58 |
traction |
Servo lub cev muaj zog |
||||
|
59 |
Siv lub cev muaj zog |
zaus conversion motor |
||||
|
60 |
Main cav ceev tswj |
Lub inverter |
||||
|
61 |
Ua tiav tshuab hluav taws xob tswj |
PLC tswj qhov program |
||||
|
62 |
tso saib |
Kov npo |
||||
Nta:
Lub tshuab stranding ua haujlwm tau zoo tshwj xeeb yog siv rau cov xov hlau stranding xws li cov xaim hluav taws xob, tsheb thaiv tsheb, thiab cov hlua sib tw twisted;
Lub tshuab stranding tshuab muaj qhov zoo ntawm kev pib ceev ceev, lub zog loj nyob deb, kev kub ceev (txog 5000 rpm, ceev tuaj yeem hloov kho), tsis tshua muaj suab nrov, thiab muaj tseeb braking thaum nws mus txog cov txheej txheem tig;
Qhov no high-efficiency stranding tshuab tuaj yeem teeb tsa nrog ntau ntu ntu ntu, uas yog tsim rau ntau ntu stranding khoom;
Lub tshuab stranding muaj kev ua haujlwm ntawm kev khaws cia ntawm cov khoom tsis siv neeg, uas tsis txhob rov qab teeb tsa ntawm tib yam khoom, thiab tuaj yeem khaws cia txog 100 yam khoom sib txawv.
Raws li cov xov hlau sib txawv, qhov sib tw ceev ntawm lub tshuab stranding tuaj yeem ceev los yog qeeb, thiab txoj hlua khi tuaj yeem segmented.
Lub tshuab stranding no muaj lub ntsej muag muag thiab siv tau yooj yim, ua rau nws xaiv rau cov xov hlau hluav taws xob.
Qhov zoo tshaj plaws ntawm qhov ua tau zoo ntawm lub tshuab stranding no: tsis siv neeg hlau clamping, cia li nres thiab qhib lub taub hau clamping tom qab ncav cuag tus naj npawb ntawm lem, uas zoo heev txuag lub sijhawm ua haujlwm ntawm cov hlau clamping, ceev thiab ceev.
